安装方式:固定式

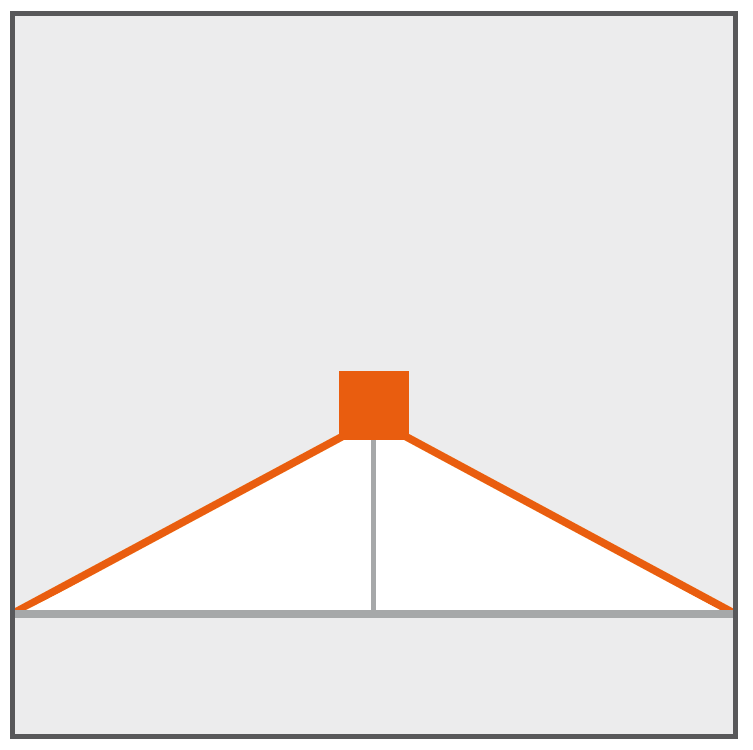

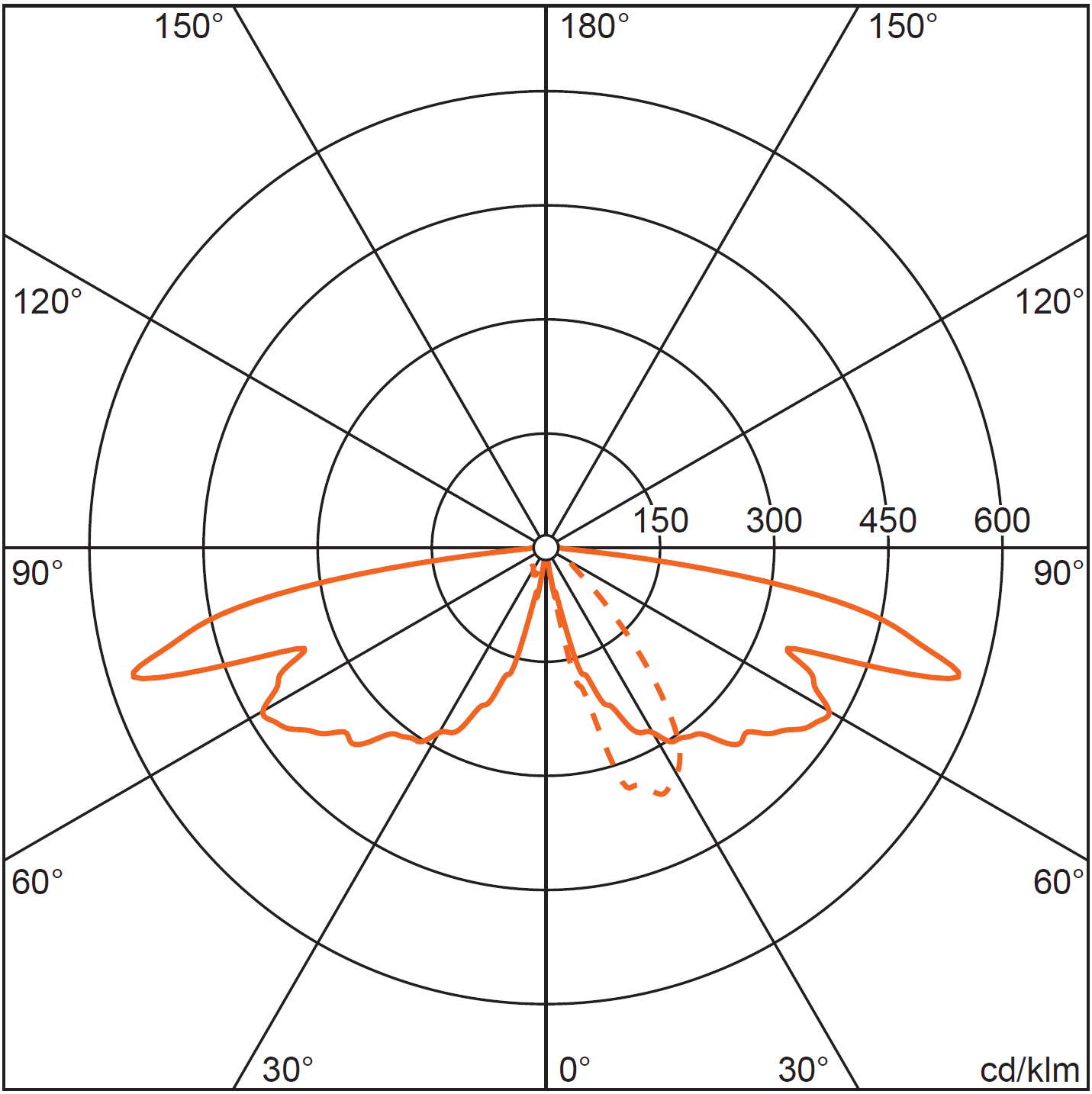

照明特点:对称配光,非对称配光
电器描述:可选择常亮或者数控电器
表面工艺:高压压铸铝端盖,铝型材灯体,siteco金属灰色;高透光PMMA面盖;有对称或非对称配光适用于各小区道路,庭院道路,社区街道等;
后盖材质:高压压铸铝
面板材质:PMMA面盖
IP等级:IP54
电气防护等级:Class Ⅱ

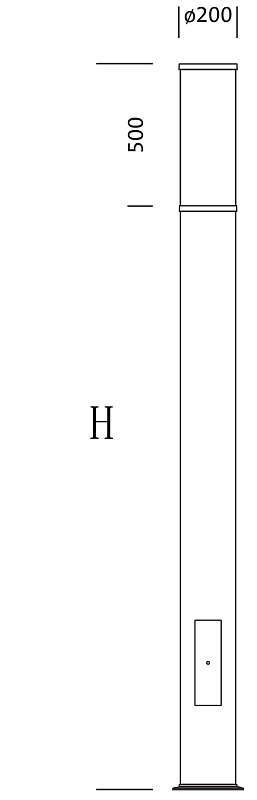

光源类型 | 色温 | 显色性 | 光通量 | 光束角 | H(mm) | 产品描述 |
LED | 3000K | >80 | 2710lm | 对称 | 1200 | 5XA5282J1A28 |
LED | 4000K | >70 | 3100lm | 对称 | 1200 | 5XA5282R1A28 |
LED | 3000K | >80 | 2410lm | 对称 | 1200 | 5XA5282J1B28 |
LED | 4000K | >70 | 2760lm | 对称 | 1200 | 5XA5282R1B28 |
LED | 3000K | >80 | 2710lm | 对称 | 2600 | 5XA5292J1A29 |
LED | 4000K | >70 | 3100lm | 对称 | 2600 | 5XA5292R1A29 |
LED | 3000K | >80 | 2410lm | 对称 | 2600 | 5XA5292J1B29 |
LED | 4000K | >70 | 2760lm | 对称 | 2600 | 5XA5292R1B29 |
LED | 3000K | >80 | 1710lm | 非对称 | 1200 | 5XA5282F1A28 |
LED | 4000K | >70 | 1860lm | 非对称 | 1200 | 5XA5282L1A28 |
LED | 3000K | >80 | 1520lm | 非对称 | 1200 | 5XA5282F1B28 |
LED | 4000K | >70 | 1660lm | 非对称 | 1200 | 5XA5282L1B28 |
LED | 3000K | >80 | 1710lm | 非对称 | 2600 | 5XA5292F1A28 |
LED | 4000K | >70 | 1860lm | 非对称 | 2600 | 5XA5292L1A28 |
LED | 3000K | >80 | 1520lm | 非对称 | 2600 | 5XA5292F1B28 |
LED | 4000K | >70 | 1660lm | 非对称 | 2600 | 5XA5292L1B28 |
